UPS 602 B
Office : 021-8816449
PRODUK ICA UPS dan STABILIZER

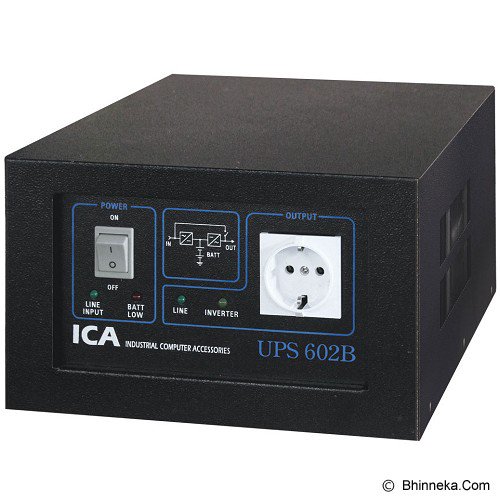

ICA UPS PN-602B Capacity 1200 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
TECHNICAL INFORMATION :
| Description | : | UPS UPS602B |
| Capacity | : | 1200 VA / 600 W |
| AC Voltage | : | 160 – 250 V |
| AC Current | : | 3.4 A |
| AC Frequency | : | 50 ± 5% Hz |
| AC Protection | : | Fuse 6.3 A |
| DC INT Battery | : | 2 x 12 V, 7 Ah |
| DC EXT Battery | : | 2 x 12 V, Max 40 Ah |
| DC Protection Fuse | : | 40 A |
| INV Waveform | : | SYNTHESIZED SINEWAVE |
| INV Voltage | : | 220 ± 5% V |
| INV Frequency | : | 50 Hz |
| INV Efficiency | : | >80 % |
| CHG Type | : | ConSTANT VOLTAGE |
| CHG Voltage | : | 27.0 V |
| CHG Current | : | 1.5 A |
| Transfer Time | : | <4 ms |
| Back Up Time | : | 10 min |
| Indicator | : | LED & BUZZER |
| Opera Temp | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 401 x 260 x 170 mm |
| Weight | : | 21 Kg |
