UPS 1022 B
Hp/ Wa : 0852 893 88205
Office : 021-8816449
PRODUK ICA UPS dan STABILIZER

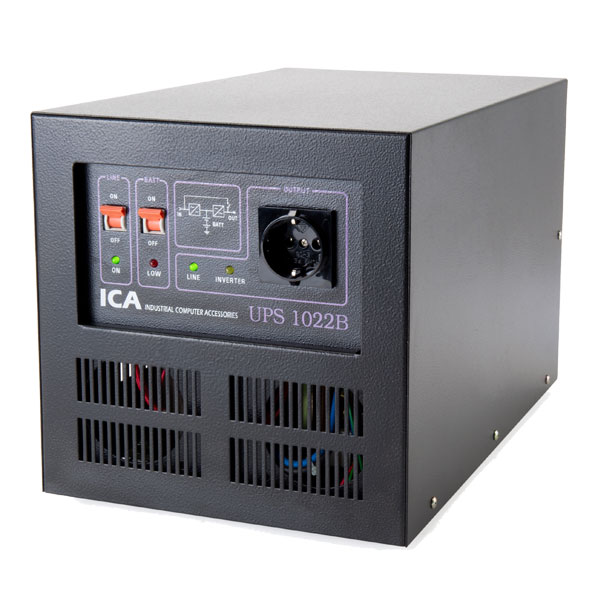

ICA UPS PN-1022B Capacity 2000 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
TECHNICAL INFORMATION :
| Description | : | UPS UPS1022B |
| Capacity | : | 2000 VA / 1000 W |
| AC Voltage | : | 160 – 250 V |
| AC Current | : | 5.6 A |
| AC Frequency | : | 50 ± 5% Hz |
| AC Protection | : | MCB 10 A |
| DC INT Battery | : | 3 x 12 V, 7 Ah |
| DC EXT Battery | : | 3 x 12 V, Max 40 Ah |
| DC Protection MCB | : | 40 A |
| INV Waveform | : | SYNTHESIZED SINEWAVE |
| INV Voltage | : | 220 ± 5% V |
| INV Frequency | : | 50 Hz |
| INV Efficiency | : | >80 % |
| CHG Type | : | ConSTANT VOLTAGE |
| CHG Voltage | : | 40.5 V |
| CHG Current | : | 3 A |
| Transfer Time | : | <4 ms |
| Back Up Time | : | 10 min |
| Indicator | : | LED & BUZZER |
| Opera Temp | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 402 x 260 x 285 mm |
| Weight | : | 28.8 Kg |
