UPS CS 638
PRODUK ICA UPS dan STABILIZER

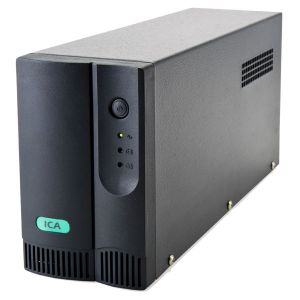

ICA UPS CS-638 Capacity 600 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
CV. PANATELINDO INTICOM
Ruko Bekasi Plaza Blok B. No 19
Jl. Ir. H. Juanda 81
Bekasi Timur Seberang TRANSPARK BEKASI
HOTINE HP : 087779107257
Hp/ Wa : 0852 893 88205
Office : 021-8816449
Web : http://panatelindo_inticom.produkanda.co.id/
E-mail : panatelindo@gmil.com
TECHNICAL INFORMATION :
| Description | : | UPS CS638 |
| Capacity | : | 600 VA / 300 W |
| AC Voltage | : | 160 – 250 V |
| AC Current | : | 1.6 A |
| AC Frequency | : | 50 ± 3 Hz |
| AC Protection Fuse | : | 3 A |
| DC INT Battery | : | 1 x 12 V, 7 Ah |
| DC Protection Fuse | : | 40 A |
| INV Waveform | : | SYNTHESIZED SINEWAVE |
| INV Voltage | : | 220 ± 5% V |
| INV Frequency | : | 50 ± 1% Hz |
| INV Efficiency | : | >80 % |
| CHG Type | : | ConSTANT VOLTAGE |
| CHG Voltage | : | 13.6 V |
| CHG Current | : | 1.5 A |
| Transfer Time | : | <4 ms |
| Back Up Time | : | 10 min |
| Indicator | : | LED & BUZZER |
| Opera Temp | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 340 x 86 x 158 mm |
| Weight | : | 7 Kg |
